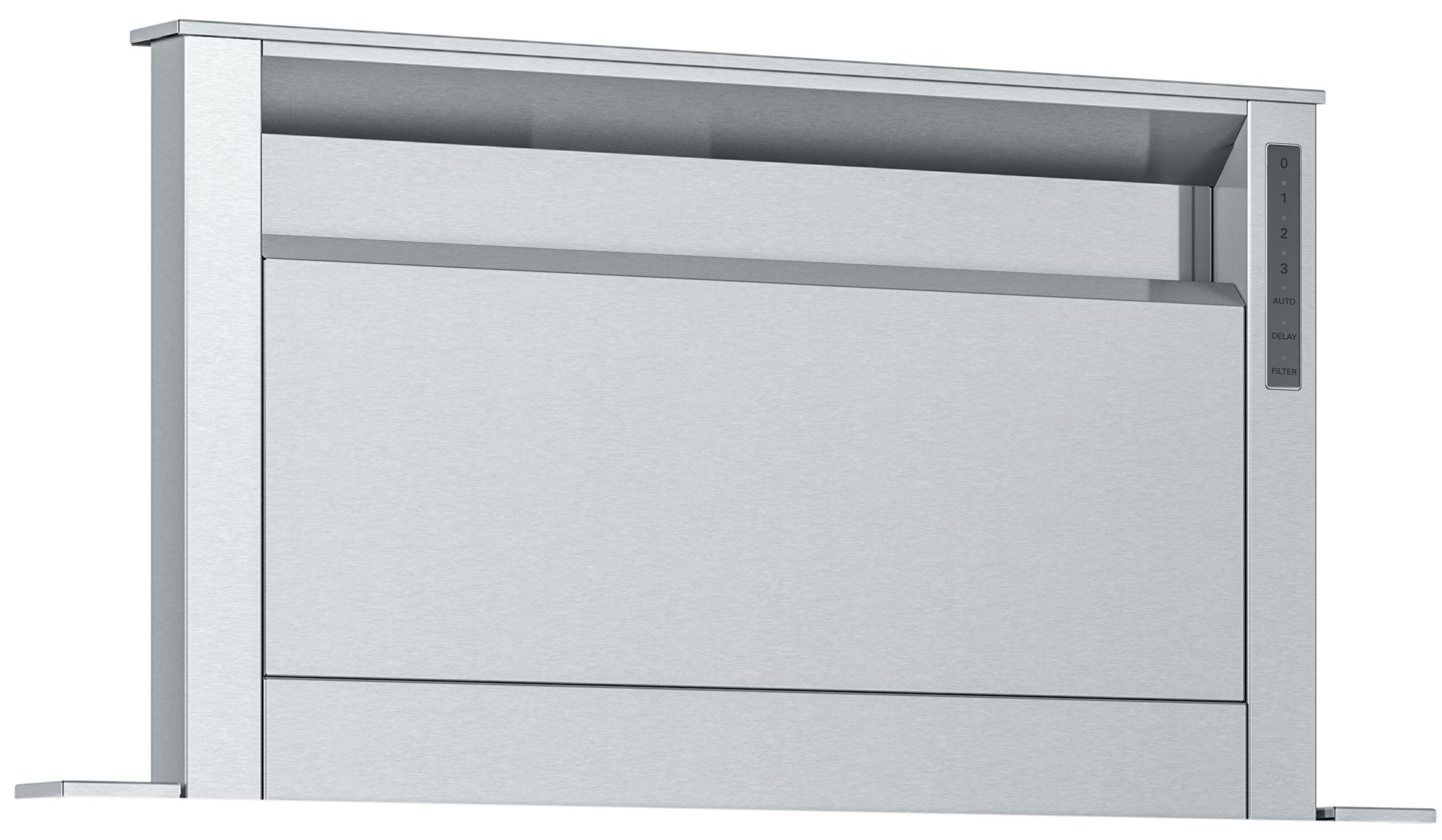

Thermador® Masterpiece® 30" Downdraft-Stainless Steel

These subtle units retract out of sight when not in use, keeping sightlines clear. At a push of a button, downdraft rises 15-inch tall

• 15" telescopic design rises to capture heat, smoke, grease, and steam
• Flexible discharge design gives 5 configurations to maximize space
• Remote or inline blowers to reduce noise, integral for top performance
• Features automatic mode, delay shut-off, and check filter light
• Recirculation kit available, use with induction/electric cooktops only

Performance

• Designed to create the ultimate cooking system with Thermador cooktops
• Downdraft rises 15" to capture heat, grease and steam from pots
• Powerfully Quiet® and efficient in operation at 1.5 sones on low speed
• Sleek, removeable front filter panel that acts as a splatter shield
• Grease mesh filters are dishwasher safe and easy to clean
• Select the precise fan speed needed with four different settings
• Automatic mode detects temperatures to adjust fan speed automatically
• 10-min delay shut-off ensure lingering odors are whisked away
• Check filter reminder light illuminates after 40 hours of operation
• Blowers sold separately and required to complete installation
• Some blower positions may need deeper cabinets. See installation guide
• Recirculation kit available, use with induction/electric cooktops only
• Replacement charcoal filters for recirculation kit sold separately
• Gas cooktop seal kit required to use with gas cooktops, sold separate
• Additional accessories may be required for installation, see manual

Design

• Design match to Thermador Masterpiece Series cooktops
• Suitable for wall or island applications
• Authentic, brushed stainless steel finish
• Sleek, smooth touch control make cleaning easy with a damp cloth
• Designed to allow for flexibility to exhaust at sides, front or rear
• Some blower positions may need deeper cabinets. See installation guide
• Additional accessories may be required for installation, see manual

Specifications
